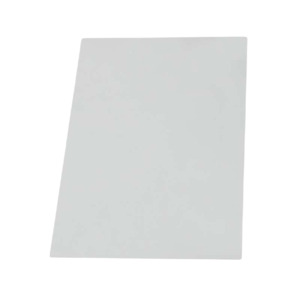

3M™ Thermally Conductive Interface Tape 8926-05 is a 0.5 mm pressure-sensitive tape designed to have good converting ability, handing and re-workability through the introduction of a thin PET carrier. 3M tape Series 8926 is designed with a soft acrylic polymer and multiple thickness options to allow excellent wet-out or conformability to many surfaces.

3M™ Thermally Conductive Interface Tape 8926-05 has good adhesion performance to many substrate types and has excellent dielectric performance. Standard Lead Time: 45 Calendar Days

• Good thermal conductivity (>1.5W/m-K)
• Excellent dielectric performance
• Low thermal impedance
• Good and reliable adhesion performance to Al and SS
• Vibration damping
• Can be used for heat management
• Can be used for general heat dissipation
• Can be used for bonding / joining parts

• Part Number: 8926-05
• Width: 23.622 in
