- 16mm Vane Probe with Temperature Sensor
- Used to measure air velocity, volume flow and air temperature
- Accurate measurement results from +0.6 to +50 m/s
- Bluetooth connection between measuring instrument and probe
- Practical button on the handle for storing individual readings, convenient measurement in any cross-section with scaled telescope (up to 1 m), optionally extendable to 2.0 m
- Must be used along with a compatible Testo multifunction instrument

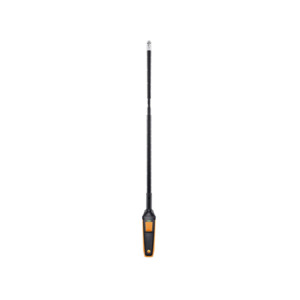

The Testo 0635 9571 is a 16mm vane probe with a sensor for measuring temperature. The 0635 9571 includes a Bluetooth handle for wireless connection to your measuring device. Please note, this probe cannot be used on its own - it must be used with a Testo multifunction instrument.
The 0635 9571 vane probe is designed to determine air velocity, volume flow and air temperature. The vane probe has a measuring range of +0.6 to +50 m/s and features maximum accuracy from 5 m/s.
Vane probe with Bluetooth including temperature sensor
The readings of the vane probe are transmitted to your measuring instrument via Bluetooth, up to a distance of 20 m.
The vane probe is equipped with a telescope, which can be extended to a maximum length of 1.0 m. The immersion depth is easy to read, even if visibility is poor, thanks to the high-contrast scaling.
The clearly structured measurement menu for volume flow enables the measuring instrument to be operated intuitively. The volume flow is precisely calculated thanks to convenient input of the size and geometry of the duct cross-section. Timed and multi-point mean calculation, average volume flow, current reading and min./max. values are displayed in the measuring instrument.
Particularly useful: press the button on the vane probe to operate the measuring instrument. For example, to store individual readings for multi-point mean calculation or to start and stop measurement series for mean calculation over time.
Wireless and space-saving: more applications, less equipment
Endlessly versatile: a universal handle can be connected to all probe heads - so you can master more applications using less equipment and save space. The Bluetooth handle makes it more convenient to carry out your measurement and guarantees less cable clutter in the case.
Or order the cable handle to connect testo probe heads. This is an advantage if Bluetooth signals are not permitted. If the vane needs to be replaced in the distant future, you can change the probe head.
If required, you can also fit the vane probe with the telescope extension (available to order separately). You can therefore attain a total length of 2 meters, making it easy to carry out measurements on large ventilation systems.
Intelligent calibration concept
You will get exceptionally accurate measurement results with the digital probe, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration - so the measuring instrument remains in continuous use.
Areas of application for the vane probe
Ventilation ducts: Use the vane probe to measure air velocity in ventilation ducts with reliability. Benefit from fast calculation of the volume flow: in the “volume flow” measurement menu of the compatible measuring instrument (please order separately), configure the dimensions and geometry of the duct cross-section - the measuring instrument shows you the volume flow straight away.
