Shimpo
Shimpo

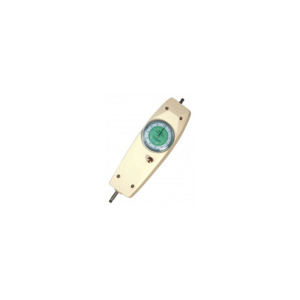

Shimpo MFD-05 Mechanical Force Gauge, Dual Scale, 45 lb. Capacity, Analog Display, MFD Series

Our Part #10287809

Condition:NEW

Mfr Part #MFD-05

Shimpo MFD-05
Shimpo
Shimpo

Shimpo MFD-05 Mechanical Force Gauge, Dual Scale, 45 lb. Capacity, Analog Display, MFD Series

Our Part #10287809

Condition:NEW

Mfr Part #MFD-05

CallEACH
  • Economical mechanical force gauges with dual kg/lb scales are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications
  • Measures tension and compression forces with only one gauge
  • Dual kilogram (kg) and pound (lb) units allows flexible usage in testing to multiple standards
  • Precision gauge movement provides a quick response for instantaneous analysis
  • Large dial indicator allows viewing of force changes as they occur, reducing the chance for parallax errors when taking readings
  • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
  • Easy push-button reset is especially helpful for repetitive testing
  • Designed for handheld use, but may also be used with the optional handle - great for loads over 15 pounds (6.8 kg)
  • Rear threaded inserts makes it easy to mount to test stands

This Mechanical Force Gauge is simple to use, economical, and offers dual kg/lb scales. The peak force operation mode features an easy push-button reset, which is especially helpful for repetitive testing in an assembly line or in quality control.

BrandShimpo
Capacity45 lb.
DisplayAnalog
IncludesMechanical Force Gauge, 6 attachments (hook, flat tip, cone tip, chisel tip, notched tip, extension rod), Mounting Screws, Carrying Case, Calibration Certificate
SeriesMFD Series
