Hammond Manufacturing
Hammond Manufacturing RH60000N4GY Type 4 Rain Hood, Use w/ PF6x000/PFA60000, Steel, Gray, RHN4 Series
Our Part #10285338
Condition:NEW
Mfr Part #RH60000N4GY
Hammond Manufacturing
Hammond Manufacturing RH60000N4GY Type 4 Rain Hood, Use w/ PF6x000/PFA60000, Steel, Gray, RHN4 Series
Our Part #10285338
Condition:NEW
Mfr Part #RH60000N4GY
$EACH
- Description
- Specifications
- Documents

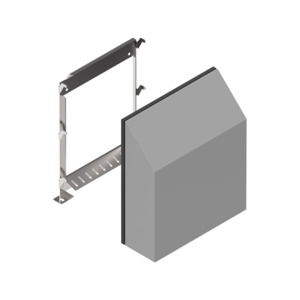

- Easy installation - mounting bracket installed around cutout and rainhood slides down over bracket
- High compression, closed cell black gasket with multiple seal dams ensure tight, waterproof seal
- Sanitary version has special FDA compatible, white multiple seal gasket
- Direct spray barrier/baffle designed to maximize airflow while providing superior protection from overspray
- Base mounting bracket - unpainted 304 SS
- Rainhood Covers
- Type 4 - ANSI61 Gray (GY) or RAL7035 Light Gray (LG) powder coated finish on galvanized steel
- Type 4X - 304 or 316 stainless steel with #4 brushed finish
- Sanitary Type 4X - 316 stainless steel with #4 brushed finish
Application
Type 4/4X (IPx6) Rainhoods (when used with PF Series Filterfans)Ideal for locations with high exposure to spraying water
Painted galvanized steel version for Type 4
304 and 316 stainless steel versions for Type 4X
Specially gasketed, 316 stainless steel, sanitary version for FDA compatible Type 4X
Sold individually
Brand: Hammond Manufacturing
Color: Gray
Dimensions: 17.33 x 15.51 x 3.56 in.
IP Rating: IPx6
Material: Steel
Safety: RoHS, cULus
Series: RHN4 Series
