Hammond Manufacturing

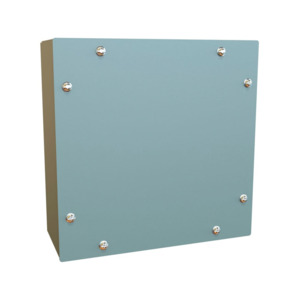

Hammond Manufacturing C3SC20208GY Type 3/12/4 J Box, Heavy Duty Screw Cover, 20 x 20 x 8, Steel, Gray, C3SC Series
Our Part #10285119
Condition:NEW
Mfr Part #C3SC20208GY
Hammond Manufacturing
Hammond Manufacturing C3SC20208GY Type 3/12/4 J Box, Heavy Duty Screw Cover, 20 x 20 x 8, Steel, Gray, C3SC Series
Our Part #10285119
Condition:NEW
Mfr Part #C3SC20208GY
$EACH
- Description
- Specifications
- Documents
- 14 gauge steel body up to 24”x24”; 12 gauge body when 30”x30” or larger
- 14 gauge steel cover up to 24”x24”; 12 gauge cover when 30”x30” or larger
- Smooth, continuously welded seams without knockouts, cutouts, or holes
- Captivated stainless steel cover screws thread into sealed wells
- Seamless poured-in place gasket
- No provision for inner mounting panel
Application
Designed for use as a wiring box, junction box, terminal or pull box in indoor or outdoor applications where subject to windblown dust or rain.Brand: Hammond Manufacturing
Color: Gray
Depth: 8 in.
Height: 20 in.
IP Rating: IP66
Material: Steel
Safety: RoHS, UL, cULus
Series: C3SC Series
Width: 20 in.
