Bud Industries

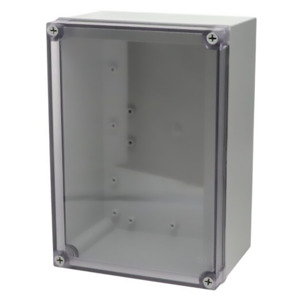

Bud Industries PIP-11777-FC Fiberglass Box with Captive Screws, Clear Lid, 10.04x7.09x4.92in, PIP Series
Our Part #10238546
Mfr Part #PIP-11777-FC
Bud Industries
Bud Industries PIP-11777-FC Fiberglass Box with Captive Screws, Clear Lid, 10.04x7.09x4.92in, PIP Series
Our Part #10238546
Mfr Part #PIP-11777-FC
$EACH
- Description
- Specifications
- Documents
- Body made of gray polycarbonate (PC) resin 10% glass fiber filled
- Cover made of clear polycarbonate (PC)
- High impact resistance
- IP-67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6)
- UL508 / UL tested for type 4X, listed #E343339
- Cover Height: 0.984 inches
- Base Height: 1.968 inches
- RoHs compliant
- Non-chlorinated and non-brominated flame retardant with UL-94 V0 rating.
- Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
- Nonmetallic captive screws without the risk of stripping
- Good chemical resistance
- Continuous gasket
Brand: Bud Industries
Cover: Clear
Cover Style: Screw Down Cover
Depth: 4.92"
Features: 10% Fiberglass Reinforced Plastic
Inside Depth: 4.4"
Inside Length: 8.86"
Inside Width: 5.91"
IP Rating: 67
Length: 10.04"
Material: PolyCarbonate/Fiberglass Blend
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X
Reach: Yes
RoHS Compliance: Yes
Series: PIP Series
Width: 7.09"
