• Panel rivets are made with nylon material to hold duct securely to the panel without corroding, ensuring longvity

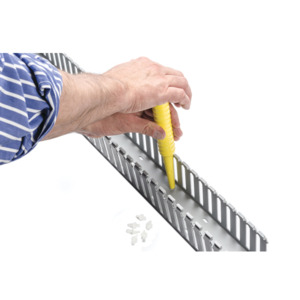

• Panel rivets can be easily inserted with use of a specially designed, long shafted panel rivet tool
• Ergonomic design of the tool ensures effortless use when inserting rivets into deep channels or locations difficult to access

HellermannTyton cable management and protection products like 181-00139 provide real solutions. For real challenges.

HellermannTyton panel rivets are one piece drive rivets that provide a fast, economic means of affixing wiring duct. The rivet is inserted into a 3/16” pre-punched hole and the pin is driven into the base, thereby expanding the rivet legs and locking the duct and sub-panel in place. The panel thickness (including the duct thickness) should be a maximum of 3/16”.
