HellermannTyton
HellermannTyton 156-01561 2-Pc Cable Tie/Fir Tree Mount, 15" L, 0.35" (9mm) Hole, 120lb, PA66HS/PA66HIRHSUV, Black, 100/pkg Priced per EACH
Our Part #10237296
Mfr Part #156-01561
HellermannTyton
HellermannTyton 156-01561 2-Pc Cable Tie/Fir Tree Mount, 15" L, 0.35" (9mm) Hole, 120lb, PA66HS/PA66HIRHSUV, Black, 100/pkg Priced per EACH
Our Part #10237296
Mfr Part #156-01561
$1.55EACH
Multiples of: 100
- Description
- Specifications
- Documents
- The “H” profile provides a broad surface contact to minimize the pinching of bundles
- Heavy duty fir tree mounts are equipped with a friction tab that will hold the tie in the mount, allowing them to be preassembled prior to installation
- Designed specifically for HellermannTyton 120 - 250 lb cable ties for heavy duty applications
HellermannTyton cable management and protection products like 156-01561 provide real solutions. For real challenges.

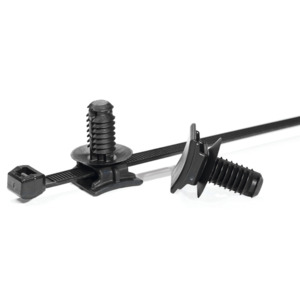

HellermannTyton Heavy Duty Fir Tree Mounts are designed with extreme applications in mind. They are optimized for up to 3-to-1 extraction versus insertion force to make assembly fast and easy. These mounts are sold as an assembly with a cable tie.
Brand: HellermannTyton
Type: Fir Tree Mount
Alternate Product Number: T120ROSFT9CLG
Bundle Diameter: 0.20" Min | 4.13" Max
Closure Type: plastic pawl
Color: Black (BK)
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-09100;110-09110;110-80000;110-80001;110-80003;110-80004;110-80017
Height: 1.16"
Length: 15"
Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.34 - 0.36"
Mounting Type: Fir Tree Mount
Operating Temperature Range: -40°F to +221°F (-40°C to +105°C)
Package Quantity: 100 Per Pkg.
RoHS Compliance: Yes
Tensile Strength: 120 lb./in.
Tooth Type: Outside Serrated
Typical Use: For Indoor Use Only
UV Stablized: Yes
Width: 0.3"
