Mitutoyo

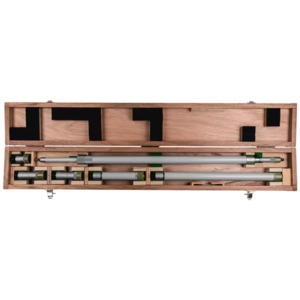

Mitutoyo 140-157 Tubular Inside Micrometer with Extension, Metric, Analog, 1000-2000mm, 140 Series
Our Part #10236461
Condition:New
Mfr Part #140-157
Mitutoyo
Mitutoyo 140-157 Tubular Inside Micrometer with Extension, Metric, Analog, 1000-2000mm, 140 Series
Our Part #10236461
Condition:New
Mfr Part #140-157
$3,760.00EACH
- Description
- Specifications
- Documents
- Extension tube type design.
- Supplied in fitted wooden case.
- Measuring surfaces in carbide are available, micro-lap finish
- Inch-Metric: Metric
- Digital/Analog: Analog
- Range: 1,000 - 2,000 mm
- Measuring span: 50 mm
- Graduation: 0.01 mm
- Spindle feed error: 6 µm
- Limit of error: ±(7+number of rods+max. measurement length/50) µm
- Scale: Thimble and sleeve satin chrome finish, ø21 mm
- Measuring spindle: Spindle pitch 0,5 mm
- Measuring face: Carbide
Brand: Mitutoyo
Display Type: Analog
Includes: Box, spanner, extension rods (5 pieces: 50mm; 100mm (2); 200mm; 500 mm), micrometer head
Measuring Range: 1000 - 2000 mm
Series: 140 Series
$3,760.00EACH
