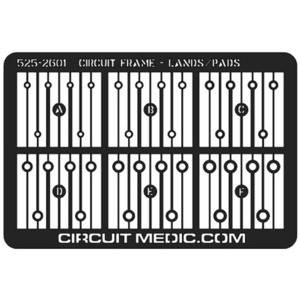

CircuitMedic 525-2601-1 Circuit Frame, Lands/Pads, Frame Size 2.25"x1.50", Bright Tin Plated
Our Part #10233518
Condition:New
Mfr Part #525-2601-1
CircuitMedic
CircuitMedic 525-2601-1 Circuit Frame, Lands/Pads, Frame Size 2.25"x1.50", Bright Tin Plated
Our Part #10233518
Condition:New
Mfr Part #525-2601-1
WARNING
RoHS
$63.00EACH
Estimated Mfr lead time:7 Days
Calif. Prop 65
RoHS
- Description
- Specifications
Circuit Frames replace damaged surface mount pads, lands, and conductors. Circuit Frames have a dry-film adhesive backing cured in 30 seconds using heat from a bonding Iron. The replaced pad, land, or conductor has a bond strength equal to the original, and no messy liquid epoxies are used for bonding.
This reliable IPC-recommended procedure meets the highest conformance level for circuit board rework or repair. For over 40 years, Circuit Frames have been used by thousands of commercial, medical, and military manufacturers around the globe.
Brand: CircuitMedic
Base Material: Copper Foil
Coating: Bright Tin Plated
Frame Size: 2.25 x 1.50
Bonding Time: 30 sec.
Includes: ■ Circuit Frame 'A' has 6 Qty W/PTH Lands 0.050" OD x 0.030" ID (1.27 mm OD x 0.76 mm ID)
■ Circuit Frame 'B' has 6 Qty W/PTH Lands 0.060" OD x 0.040" ID (1.52 mm OD x 1.00 mm ID)
■ Circuit Frame 'C' has 6 Qty W/PTH Lands 0.070" OD x 0.040" ID (1.78 mm OD
Material: Metal
Mounting Type: Lands/Pads
Plating: 0.0001"
Pressure Range: 200 - 400 psi
Product Type: Circuit Frame
Shape: Rectangular
Shelf Life: 180 days
