HellermannTyton

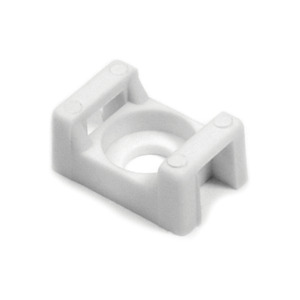

HellermannTyton CTM310C2 Cable Tie Anchor Mount, 0.86"x0.61", 0.2" Hole Dia, White, 100/Pkg
Our Part #10219911
Condition:New
Mfr Part #CTM310C2
HellermannTyton
HellermannTyton CTM310C2 Cable Tie Anchor Mount, 0.86"x0.61", 0.2" Hole Dia, White, 100/Pkg
Our Part #10219911
Condition:New
Mfr Part #CTM310C2
RoHS
$EACH
Multiples of: 100
RoHS
- Description
- Specifications
- Documents
- KR/CTM series are designed to provide stability to wire bundles. These mounts can accommodate miniature, intermediate, or standard cross-section cable ties. Each mount is secured with a single screw.
Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
Brand: HellermannTyton
Type: Anchor Mount
Package Quantity: 100 Per Pkg.
Alternate Product Number: 151-30605, CTM3
Series: CTM-Series
Color: White
Flammability Rating: UL 94 V-2
Height: 0.37"
Length: 0.86"
Material: Polyamide 6.6 (PA66)
Mounting Hole Diameter: 0.2"
Mounting Type: Anchor
Operating Temperature Range: -40 to 185°F
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.61"
$EACH
Multiples of: 100
