HellermannTyton

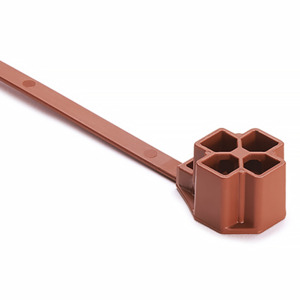

HellermannTyton 157-00295 Cable Tie, M12 Stud Mount, 8.6"x0.93", PA46, Brown, 2000/Pkg
Our Part #10217683
Condition:New
Mfr Part #157-00295
HellermannTyton
HellermannTyton 157-00295 Cable Tie, M12 Stud Mount, 8.6"x0.93", PA46, Brown, 2000/Pkg
Our Part #10217683
Condition:New
Mfr Part #157-00295
RoHS
$0.77EACH
Multiples of: 6,000
RoHS
- Description
- Specifications
- Documents
- Covers top of stud for protection from stud end. Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure. PA46 material option allows use in high-heat applications.
Stud Mount Ties offer outstanding stud retention. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Brand: HellermannTyton
Type: Stud Mount
Package Quantity: 2000 Per Pkg.
Alternate Product Number: T80ROSSB12U
Bundle Diameter: 0.14" Min | 1.97" Max
Closure Type: plastic pawl
Color: Black
Flammability Rating: UL 94 HB
Height: 0.96"
Length: 9.705"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.47" x 0.07"
Operating Temperature Range: -40 to +266°F
RoHS Compliance: Yes
Tensile Strength: 120 lb.
Tooth Type: Outside Serrated
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.92"
