HellermannTyton

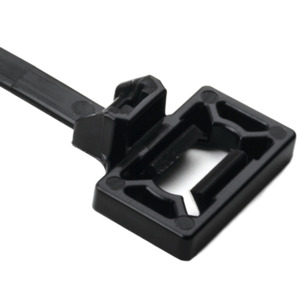

HellermannTyton 157-00226 Cable Tie, Stud Mount Lateral, 6.42"Lx0.181"W, PA66HS, Black, 500/Pkg
Our Part #10217668
Condition:New
Mfr Part #157-00226
HellermannTyton
HellermannTyton 157-00226 Cable Tie, Stud Mount Lateral, 6.42"Lx0.181"W, PA66HS, Black, 500/Pkg
Our Part #10217668
Condition:New
Mfr Part #157-00226
RoHS
$0.38EACH
Multiples of: 500
RoHS
- Description
- Specifications
- Documents
- Special shape provides a .20" lateral adjustment to allow for any misalignment of the stud or incorrect positioning of the tie on the cables. Easy to install without the need for a tool. Design provides low insertion and high extraction force.
The low profile stud mount allows for several ties to be installed on top of one another. The features can be used to accommodate applications requiring the fastening of a single bundle or multiple bundles on the same stud.
Brand: HellermannTyton
Type: Stud Mount Cable Ties
Package Quantity: 500 Per Pkg.
Alternate Product Number: T50SOSWSP5E
Bundle Diameter: 0.04" Min | 1.38" Max
Closure Type: plastic pawl
Color: Black
Flammability Rating: UL 94 V-2
For Use With: 104-10010;110-05005;110-07000;110-07100;110-07101;110-70083;110-70084;110-70130;110-80000;110-80001
Length: 6.42"
Material: Polyamide 6.6 heat stabilized (PA66HS)
Operating Temperature Range: -40 to +221°F
RoHS Compliance: Yes
Tensile Strength: 44.96 lb.
Tie Length: 04 -08 Inches
Tooth Type: Outside Serrated
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.181"
$0.38EACH
Multiples of: 500
