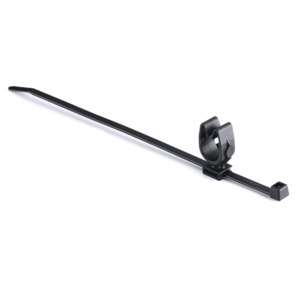

HellermannTyton 156-01816 Cable Tie, MOC Clip, Unassembled, 0.74"L, Black, 3000/Ctn, MOC Series

Our Part #10217214

Condition:New

Mfr Part #156-01816

HellermannTyton 156-01816
HellermannTyton
HellermannTyton

HellermannTyton 156-01816 Cable Tie, MOC Clip, Unassembled, 0.74"L, Black, 3000/Ctn, MOC Series

Our Part #10217214

Condition:New

Mfr Part #156-01816

RoHS
$EACH
Multiples of: 3,000
RoHS
  • Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement. Controlled flex and angled entry promote easy installation. Fixed connector controls routing orientation. Cable tie accommodates wide range of secondary bundle sizes.

The MOC with Saddle to T50R Tie has a two-piece design that keeps two routings secured together while providing a fixed orientation for each bundle. The bi-directional saddle design allows the bundles to be coupled parallel or perpendicular to one another. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness.

Brand: HellermannTyton
Type: Outdoor Cable Ties
Package Quantity: 3000 Per Pkg.
Series: MOC Series
Alternate Product Number: T50RMOC12SAD-SET
Bundle Diameter: 0.41" Min | 0.54" Max
Closure Type: plastic pawl
Color: Black
Depth: 0.39"
Flammability Rating: UL 94 HB
Halogen Content: Yes
Height: 1.11"
Length: 0.74"
Locking Type: Self-Locking (Standard)
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40 to 221°F
RoHS Compliance: Yes
Style: Unassembled
Tensile Strength: 50 lb.
Tie Length: <4 Inches
Tooth Type: Inside Serrated
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
