HellermannTyton
HellermannTyton

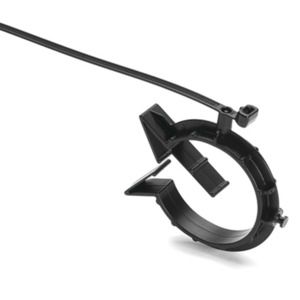

HellermannTyton 156-01348 Cable Tie, 2-Piece, Pipe Clip, 8.3"L, 39-45mm, PA66/HIRHS, Black, 250/Pkg

Our Part #10217160

Condition:New

Mfr Part #156-01348

HellermannTyton 156-01348
HellermannTyton
HellermannTyton

HellermannTyton 156-01348 Cable Tie, 2-Piece, Pipe Clip, 8.3"L, 39-45mm, PA66/HIRHS, Black, 250/Pkg

Our Part #10217160

Condition:New

Mfr Part #156-01348

RoHS
$1.35EACH
Multiples of: 250
RoHS
  • Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point. 2-piece design allows installer to slide clip around cable tie to obtain optimum orientation Clip is reusable, making relocation or adjustments simple

HellermannTyton’s 2-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.

BrandHellermannTyton
TypePipe Clip (1-Piece)
Package Quantity250 Per Pkg.
Alternate Product NumberT50SMVCOC39-45
Bundle Diameter0.08" Min | 2.0" Max
ColorBlack
Flammability RatingUL 94 HB
For Use With104-10010;110-05005;110-07000;110-07100;110-07101;110-70083;110-70084;110-70130;110-80000;110-80001
Height0.51"
Length9"
MaterialPolyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range-40 to +221°F
RoHS ComplianceYes
Style1-Piece Tie Assemblies
Tensile Strength50 lb.
Typical UseFor Indoor Use Only
UV StablizedNo
Width0.18"
$1.35EACH
Multiples of: 250
