HellermannTyton
HellermannTyton 156-01092 Cable Tie, 1.09"x0.47", PA66/HIRHSUV, Black, 3000/Ctn, LOC Series
Our Part #10217144
Condition:New
Mfr Part #156-01092
HellermannTyton
HellermannTyton 156-01092 Cable Tie, 1.09"x0.47", PA66/HIRHSUV, Black, 3000/Ctn, LOC Series
Our Part #10217144
Condition:New
Mfr Part #156-01092
$EACH
Multiples of: 3,000
- Description
- Specifications
- Documents

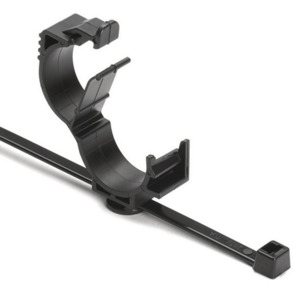

- The 360 degree locking enclosure and cable tie dynamically fit a range of bundle sizes.
- Clamp can be opened for bundle maintenance.
- Low-profile release tab won't interfere with bundle or nearby routing.
- The two bundles are allowed to rotate up to 90 degrees from one another.
HellermannTyton's two-piece cable tie assembly offers dual bundle routing. The clip portion creates a full and secure lock completely around one bundle, while the cable tie creates a secure solution for a second bundle.
Brand: HellermannTyton
Type: Outdoor Cable Ties
Package Quantity: 3000 Per Pkg.
Alternate Product Number: T50RLOC10-14-SET
Series: LOC Series
Bundle Diameter: 0.39" Min | 0.55" Max
Closure Type: plastic pawl
Color: Black
Depth: 0.47"
Flammability Rating: UL 94 HB
Halogen Content: No
Height: 1.08"
Length: 1.09"
Locking Type: Self-Locking (Standard)
Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40 to 230°F
RoHS Compliance: Yes
Tensile Strength: 50 lb.
Tie Length: <4 Inches
Tooth Type: Inside Serrated
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.47"
