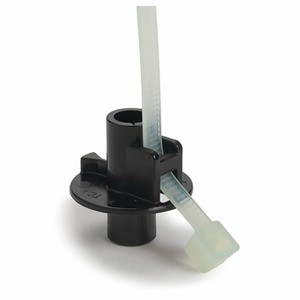

- Versatile design allows cable routing above, perpendicular or parallel to stud. Can mount up to three bundles simultaneously, making efficient use of a single mounting point. Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure. PA46 material option allows use in high-heat applications.
Unique, two-piece design allows routing to be above, parallel or perpendicular to stud. This also enables up to three separate bundles to be fastened to the same stud. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Brand:Â HellermannTyton
Type:Â Stud Mount
Package Quantity:Â 500 Per Pkg.
Alternate Product Number:Â T50RSBH5-10
Bundle Diameter:Â 1.77" Max
Closure Type:Â plastic pawl
Color:Â Natural
Flammability Rating:Â UL 94 HB
For Use With:Â 104-10010;110-05005;110-07000;110-07100;110-07101;110-70083;110-70084;110-70130;110-80000;110-80001
Length:Â 8.5"
Material:Â Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Mounting Type:Â Arrowhead Mount
Operating Temperature Range: -40 to +221°F
RoHS Compliance:Â Yes
Style:Â 2-Piece Tie Assemblies
Tensile Strength:Â 50 lb.
Tooth Type:Â Inside Serrated
Typical Use:Â For Indoor and Outdoor Use
UV Stablized:Â No
Width:Â 0.2"
