HellermannTyton

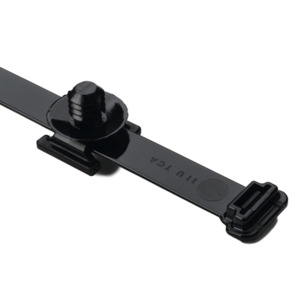

HellermannTyton 156-00069 Cable Tie, Fir Tree Mount, 15"L, 0.03-0.25" Panel Thick, Black, 100/Pkg
Our Part #10217069
Condition:New
Mfr Part #156-00069
HellermannTyton
HellermannTyton 156-00069 Cable Tie, Fir Tree Mount, 15"L, 0.03-0.25" Panel Thick, Black, 100/Pkg
Our Part #10217069
Condition:New
Mfr Part #156-00069
RoHS
$EACH
Multiples of: 100
RoHS
- Description
- Specifications
- Documents
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation. Fir tree provides low insertion effort yet demonstrates high extraction resistance. Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
Brand: HellermannTyton
Type: Push-Mount & Screw-Mount Cable Ties
Package Quantity: 100 Per Pkg.
Alternate Product Number: WSIFT9A, PA66HIRHSUV
Bundle Diameter: 0.38" Min | 3.25" Max
Closure Type: plastic pawl
Color: Black
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-09100;110-09110;110-80003;110-80017
Height: 0.75"
Length: 15"
Locking Type: Self-Locking (Standard)
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.34-0.36"
Operating Temperature Range: -40 to 221°F
RoHS Compliance: Yes
Style: 2-Piece Tie Assemblies
Tensile Strength: 120 lb.
Thickness: 0.04 - 0.62"
Tie Length: 13-18 Inches
Tooth Type: Inside Serrated
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.3"
