HellermannTyton
HellermannTyton 151-03095 Cable Tie Mount, Torque, 0.25" Hole, PA666V0, Black, HDM-Series, 500/Pkg
Our Part #10216965
Condition:New
Mfr Part #151-03095
HellermannTyton
HellermannTyton 151-03095 Cable Tie Mount, Torque, 0.25" Hole, PA666V0, Black, HDM-Series, 500/Pkg
Our Part #10216965
Condition:New
Mfr Part #151-03095
RoHS
$EACH
Multiples of: 500
RoHS
- Description
- Specifications
- Documents
- Mount and tie combination makes it easy to service bundles in the field.
- Eliminates the need for multiple sized diameter clamps.
- Low fire hazard materials comply with stringent NFPA 130 safety standards and improve opportunities to get product specified at the engineering stage of a project.

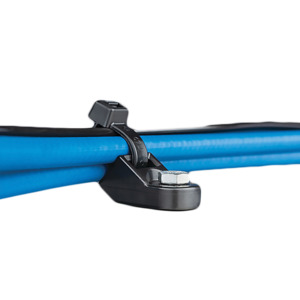

These mounts contain a small tab inside the mounting hole to temporarily engage the threads, allowing assemblers to preinstall the mount on a stud before securing with a washer and a nut. For use with HellermannTyton heavy duty T120, T150 or Wide Strap Cable Ties. Low fire hazard material is designed specifically for rail applications.
Brand: HellermannTyton
Type: Torque Mount
Package Quantity: 500 Per Pkg.
Alternate Product Number: HDM250
Series: HDM-Series
Color: Black
Flammability Rating: UL 94 V-0
Halogen Content: Yes
Height: 0.67"
Length: 1.41 yd.
Material: Polyamide 6.6/6, V0 (PA666V0)
Maximum Torque: 9.58 lbf-ft
Mounting Hole Diameter: 0.25"
Mounting Type: Torque
Operating Temperature Range: -40 to 248°F
RoHS Compliance: Yes
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.76"
$EACH
Multiples of: 500
