HellermannTyton
HellermannTyton 151-01122 Cable Tie Mount, Screw, 0.25" Hole, PA66HIRHSUV, Blk, LPM-Series, 500/Pkg
Our Part #10216568
Condition:New
Mfr Part #151-01122
HellermannTyton
HellermannTyton 151-01122 Cable Tie Mount, Screw, 0.25" Hole, PA66HIRHSUV, Blk, LPM-Series, 500/Pkg
Our Part #10216568
Condition:New
Mfr Part #151-01122
RoHS
$EACH
Multiples of: 500
RoHS
- Description
- Specifications
- Documents
- Separates bundles to help prevent chafing and wear.
- Single bundles can be mounted on top of the mount, or two bundles can be separated using the two side saddles; giving the mount versatility.
- Low profile design allows mount to be placed in areas where space is limited.

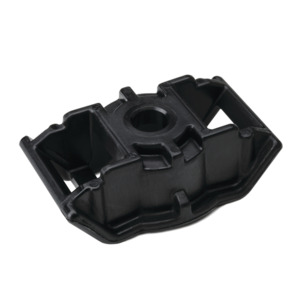

Low Profile Mounts secure bundles close to mounting surfaces, making them ideal for applications where bundle mounting space is limited. These are secured with a .25" mechanical fastener, and have a counter bore for easy access with a socket which can be torqued up to 100 in/lbs. The mount accommodates cable ties up to .5" in width.
Brand: HellermannTyton
Type: Screw-Mount
Package Quantity: 500 Per Pkg.
Alternate Product Number: LPM25
Series: LPM-Series
Color: Black
Flammability Rating: UL 94 HB
Height: 0.66"
Length: 1.8 yd.
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.25"
Mounting Type: Screw
Operating Temperature Range: -40 to 221°F
RoHS Compliance: Yes
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.98"
$EACH
Multiples of: 500
