HellermannTyton 151-01023 LOC Locking Clamp, 15 - 19 mm, with FT6 Fir Tree, PA66HIRHSUV, Black
Our Part #10216558
Condition:New
Mfr Part #151-01023
HellermannTyton
HellermannTyton 151-01023 LOC Locking Clamp, 15 - 19 mm, with FT6 Fir Tree, PA66HIRHSUV, Black
Our Part #10216558
Condition:New
Mfr Part #151-01023
RoHS
$EACH
Multiples of: 2,000
RoHS
- Description
- Specifications
- Documents
- The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
- Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual disengagement if service is needed.
- Disc around the fir tree eliminates potential debris and water to enter the panel hole.

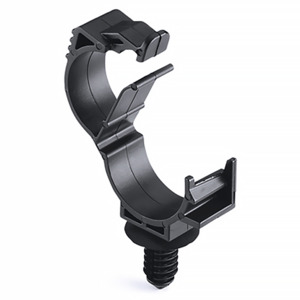

The Locking Omega Clip creates a full and secure lock completely around a wire bundle ranging from 5-25 mm. The fixating fir tree on this clip allows for the clip to be secured into a panel by utilizing a round or oval hole.
Brand: HellermannTyton
Type: LOC Clamps with Fir Tree
Alternate Product Number: LOC15-19FT6LG2
Bundle Diameter: 0.59" Min | 0.75" Max
Color: Black
Height: 2.57"
Length: 1.67"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.24 - 0.28"
Operating Temperature Range: -40°F to +221°F (-40°C to +105°C)
RoHS Compliance: Yes
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.47"
