HellermannTyton

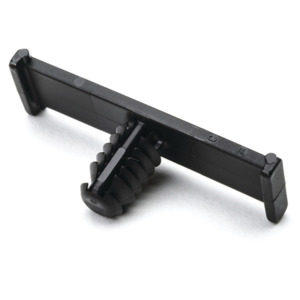

HellermannTyton 151-00663 Bundling Clip w/Fir Tree, 1.5", 0.7-5.7mm Panel Thick., PA66HIRHSUV, Black
Our Part #10216520
Condition:New
Mfr Part #151-00663
HellermannTyton
HellermannTyton 151-00663 Bundling Clip w/Fir Tree, 1.5", 0.7-5.7mm Panel Thick., PA66HIRHSUV, Black
Our Part #10216520
Condition:New
Mfr Part #151-00663
RoHS
$0.07EACH
Multiples of: 10,000
RoHS
- Description
- Specifications
- Documents
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
HellermannTyton Bundling Clips are designed to provide simple and easy methods for securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties.
Brand: HellermannTyton
Type: Bundling Clips
Alternate Product Number: TC6FT6
Flammability Rating: UL 94 HB
Length: 1.5"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.24 - 0.27"
Operating Temperature Range: -40°F to +221°F (-40°C to +105°C)
RoHS Compliance: Yes
Thickness: 0.03" - 0.71"
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.5"
$0.07EACH
Multiples of: 10,000
