HellermannTyton

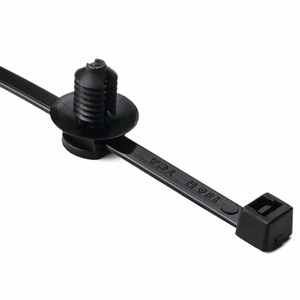

HellermannTyton 150-31091 Cable Tie, Fir Tree Mount, 8"L, 50lb, 0.26-0.28" Dia, PA66, 500/Pkg
Our Part #10216479
Condition:New
Mfr Part #150-31091
HellermannTyton
HellermannTyton 150-31091 Cable Tie, Fir Tree Mount, 8"L, 50lb, 0.26-0.28" Dia, PA66, 500/Pkg
Our Part #10216479
Condition:New
Mfr Part #150-31091
RoHS
$0.49EACH
Multiples of: 500
RoHS
- Description
- Specifications
- Documents
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
Brand: HellermannTyton
Type: Fir Tree Mount
Package Quantity: 500 Per Pkg.
Alternate Product Number: T50RFT6LG
Bundle Diameter: 0.06" Min | 2.0" Max
Closure Type: plastic pawl
Color: Black
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-07000;110-07100;110-07101;110-70083;110-70084;110-70130;110-80000;110-80001
Height: 2.04"
Length: 8.3"
Manufacturer URL: https://www.hellermanntyton.us/products/150-31091/
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.26 - 0.28"
Mounting Type: Fir Tree Mount
Operating Temperature Range: -40 to +221°F
RoHS Compliance: Yes
Style: Assembled
Tensile Strength: 50 lb.
Tooth Type: Inside Serrated
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.18"
$0.49EACH
Multiples of: 500
