- Wide strap is designed to minimize pinching of soft hoses and convoluted tubing.
- Low-profile head with clamping rails provide compact bundling with a full circumferential compression around bundles.
- Wider and thinner strap design increases flexibility, provides low insertion and minimizes pinching of bundles.
- Bent tail allows for quick insertion into head or mounts.

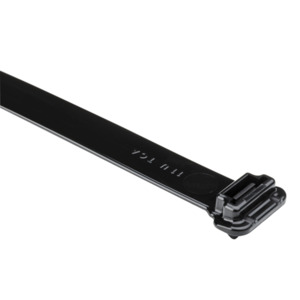

The Heavy Duty Wide-Strap Cable Tie was designed to minimize the pinching of soft bundles and the potential of lateral movement along the bundle. The low-profile head and underside clamping rails increase the grip around the bundle and provide a better fit than traditional cable ties. These are used primarily in the trucking and heavy equipment industries, but can be used in a wide variety of applications where strength is needed.
Brand:Â HellermannTyton
Type:Â Heavy-Duty Cable Ties
Package Quantity:Â 300 Per Pkg.
Alternate Product Number:Â WSR
Series:Â WS-Series
Bundle Diameter:Â 0.38" Min | 4.13" Max
Closure Type:Â plastic pawl
Color:Â Black
Flammability Rating:Â UL 94 HB
For Use With:Â 104-10010;110-09100;110-09110;110-80003;110-80017
Halogen Content:Â Yes
Head Length:Â 0.393"
Head Width:Â 0.78"
Length:Â 15.1"
Locking Type:Â Self-Locking (Standard)
Manufacturer URL:Â https://www.hellermanntyton.us/products/111-12302/
Material:Â Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40 to 221°F
RoHS Compliance:Â Yes
Tensile Strength:Â 120 lb.
Tie Length:Â 13-18 Inches
Tooth Type:Â Inside Serrated
Typical Use:Â For Indoor and Outdoor Use
UV Stablized:Â Yes
Width:Â 0.5"
