• Member of the Plug & Test family of interchangeable sensors and indicators
• Measures tensile and compressive forces
• NIST-traceable certificate of calibration with data is included.
• A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
• With mounting hardware
• Warranty is 3 years

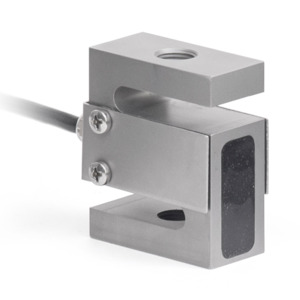

Series R01 rugged smart sensors are designed for measuring tension and compression force, with applications in virtually every industry. Durable S-Beam design with threaded holes on two sides allows for many configurations. The sensor can be integrated into an existing system or mounted to a Mark-10 test stand. A shortened cable is available for mounting to certain test stand models (when equipped with optional AC1062 mounting kit)*. Capacities available from 50 to 10,000 lbF [250 N to 50 kN]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test technology. Includes a certificate of calibration with data. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
