• Measures voltage up to 500kv line-to-ground
• Voltage readout distinguishes between nominal and induced voltages
• Audible indication when voltage is detected
• Test Point mode available (DVI-500T model)
• Auto-shutoff and low battery indication features
• Versatile for overhead and underground applications
• Voltage Rating: 100V - 500kV line-to-ground
• Accuracy: Laboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25%

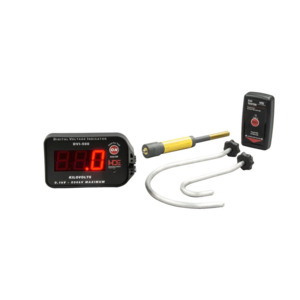

The DVI-500 is designed to be used on both transmission and distribution systemsin overhead and underground applications. The DVI-500 indicates voltage from 0.1kV – 500kV and is auto-ranging with no range selector switch orsettingsrequired.Voltage is displayed on a large 1.45"LED display with a 3-digit readout. In addition, an audible alarm alertsthe user to the presence of voltage above 100VAC. The DVI is auto shut-off and will turn off after 4 minutes of inactivity

Two overhead probes are supplied with the DVI-500 - a large 6" overhead hook probe for transmission system use (HP-DVI-6) and a smaller 2"overhead hook probe for distribution system use (HP-DVI-2). Simply attach the correct probe for the proper overhead application. Use of a hotstick isrequired for all overhead and underground applications.

The DVI-500T can be used in underground applicationsto measure elbow test points using the underground probe (IEP-DVI-5).
