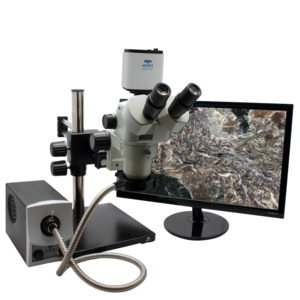

High-definition 1080P auto focus inspection system with a 22" monitor offering superb image quality at 60 frames per second. You can operate this system with or without a PC. Without a PC camera connects directly to the included HDMI monitor. View and record images and perform measurements using the included on-screen tools. Images and videos can be saved to the included SD card. Connect the camera to a PC to utilize more advanced features in the included software. The included Fiber Optic LED provides bright, shadow-free illumination.

This system includes Aven's SPZV-50 Stereo Zoom Microscope. Viewing through the microscope a magnification range of 6.7x to 50x is obtained. The on-screen magnification range is 34x to 255x.

An Unprecedented High-Speed Focusing Experience

The heart of this system is our Mighty Cam Pro auto-focus camera. It offers both continuous and single-shot auto-focus modes helping you increase your productivity. The camera also supports mouse wheel control for fine-tuning. Data transfer up to 60 frames per second enables users to get clear images with ease.

The Mighty Cam Pro features dual outputs - USB and HDMI - for use with a PC or an HD monitor.

Perfect Color Reproduction

The camera's color processing is capable of a new level of precision producing extremely high color definition.

Integrated Measurement System

Built-in on-screen tools provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance, and much more. Three different length units of millimeter, centimeter, and micrometer are provided to meet various measurement requirements in different applications. A simple calibration tool is also included.

Connect Camera To a PC To Utilize More Advance Features

The included computational imaging software provides users with more functions such as:

• Auto-focus fine-tuning
• Intelligent capture and processing
• Efficient measurement and attribute editing
• Reporting

Stitching Feature

Utilizing the Mosaic software package, operators can generate large panoramic images. Simply glide an object under the camera and the advanced software will stitch together images into one larger image.

Real-Time Depth of Field Fusion

The Mighty Cam Pro can change the depth of field without adjusting the optics. Simply click on the part of the image you want to focus on and the camera will bring that sector into focus.

Precision Engineered Stereo Zoom Microscope

The ideal scope for a wide range of investigative/inspection applications, Aven's dynamic new microscope SPZV-50 extends the boundaries of stereo zoom microscopy, employing standard 10X eyepieces to achieve 6.7x - 50x continuous zoom magnification all the while providing a continuous working distance of 3.3" (84mm).

• 6.7x - 50x optical magnification
• 34x - 255x on-screen magnification
• Click-Stop zoom knobs allow operators to make accurate measurements

Double Arm Boom Stand

The smooth movement of a ball-bearing slide allows you to move your microscope easily over and across the object being viewed. Heavy metal base (21lbs; 9.5kg) provides excellent stability.

Fiber Optic LED Illumination

A versatile illumination source, this device easily adapts to your specific application. The 26200A-310 contains a 24-watt LED lamp, outputs a color temperature of 5600K, and has an expected lamp life of 10,000 hours.

E-Arm Focus Mount

The E-Arm focus mount secures directly to the end of the Ultra Glide Arm and can be adjusted to tilt to the ideal inspection angle. Features focus adjustment knobs to raise and lower the microscope in precise increments.
