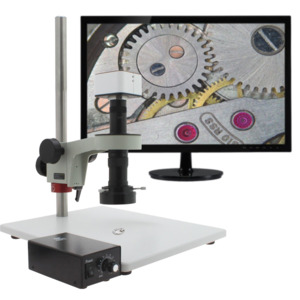

Designed for high magnification applications, this digital microscope system has a magnification range of 18.9x - 251.4x. This system includes a microlens with detents, allowing users to calibrate the lens at specific settings for high accuracy measurements, a USB 3.0 6M Digital Camera with advanced measurement software, a Standard Pole Stand with a heavy metal base, and an LED Ring Light with Intensity Control for shadowless illumination. A 1x and 0.5x auxiliary lens is also included for a large magnification range. Just connect to a PC and inspect document, share, and measure your parts with ease

*Monitor not included

An Unprecedented Inspection Experience

Aven's Mighty Cam USB 6M CMOS Camera with imaging and measurement software. Create stunning images with outstanding clarity then measure, annotate, and analyze with ease with the imaging software.

Perfect Color Reproduction

The camera's color processing is capable of a new level of precision producing extremely high color definition.

Measurement Tools

On-screen tools within the included software provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance, and much more. Three different length units of millimeter, centimeter, and micrometer are provided to meet various measurement requirements in different applications.

Advanced Features

The included computational imaging software provides users with more functions such as:

• Intelligent capture and processing
• Efficient measurement and attribute editing
• Reporting

Stitching Feature

Utilizing the Mosaic software package, operators can generate large panoramic images. Simply glide an object under the camera and the advanced software will stitch together images into one larger image.

Precision Engineered Micro Zoom Lens

Aven's Micro Lens System produces crisp and clear images that are distortion-free and void of chromatic aberration. This lens system comes with detents that allow you to calibrate the lens for measurement repeatability. Comes standard with a 1x C mount coupler and 1x objective lens. Total magnification is 0.6x to 4.0x, Field of View is 6 x 8mm at low magnification and 0.8 x 1.2mm at high magnification. The Working Distance is 82mm. Additional couplers and objective lenses are available to help you configure a lens system to meet your application.

Standard Stand

This heavy-duty stand is perfect for applications where horizontal extension is limited. Large base 279 x 330 x 12.7mm to accommodate a large variety of parts. The post diameter is 25mm.

• Aluminum powder-coated base
• All metal construction
• UNC bolt and safety clamp included

Focus Mount

Aven's Focus Mount with 74mm diameter ring, and a focus mount has a precision rack and pinion mechanism with tension control and coarse and fine focus knobs. A tension control adjustment pin is included with the mount.
