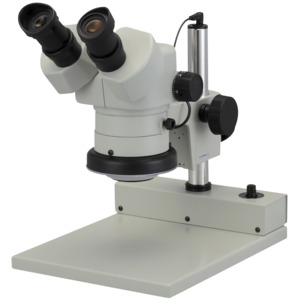

Aven's DSZ-44 Stereo Zoom Binocular Microscope 10x to 44x is mounted on a pole stand featuring built-in LED illumination and dimmer control with coarse and fine focus. Large base 220 x 284mm. A compact footprint helps save bench space.

High-Grade Optics and Unibody Design

Built-in dimmable ring light with 60 energy-saving LEDs This inspection and laboratory microscope system from Aven features premium quality optics, design, and manufacturing, as well as a uni-body construction and multi-coated optical components for excellent contrast and edge-to-edge definition of 3D images. A 60-LED ring light with dimmer control is built into the focus mount, which has coarse and fine focusing for precise control. These benefits make this system well-suited for high-volume inspection stations, R & D engineering labs, medical or scientific research, and education applications. The compact stand in this configuration is ideal for observing small objects and for work areas with limited space.

Wide Magnification Range

An impressive magnification range of 10x to 44x ensures superior optics with crystal clear, high-resolution images. Optional lenses can increase the range from 2.5x to 140.8x.

With an incline of 45 degrees, Aven's 10x eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and an Adjustable Interpupillary Distance of 52mm to 75mm provide operators with even more flexibility in their individual applications. Optional 15x and 20x eyepieces are available to further extend your magnification range.

Brightness Adjustment

Equipped with 60 eco-friendly LED lights, the scope includes Built-In Illumination with a Dimmer Control knob. This energy-saving, productivity-enhancing feature ensures color consistency when dimming, and a flicker-free experience for operators. Adjustable Zoom An adjustable zoom knob helps to further enhance the precision work experience. The graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.

Versatile Stand

The package includes Aven's Stand PLED featuring 60 built-in eco-friendly LED lights and a dimmer. The lightweight, compact stand has a rack-and-pinion focus mount (74 mm in diameter) with fine focus adjustment for precise control, and a large base (220mm x 284 mm x 15mm). 255mm vertical post length.
