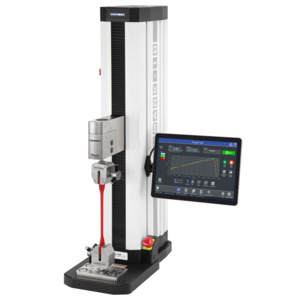

• Photo is for illustration only - No tablet included with this model
• Force Capacity is 500 lbF (2.2 kN)
• Travel Distance is 18in (457mm)
• Position Accuracy is ± 0.002in (0.05mm) under any load
• IntelliMESUR software install files on USB flash drive
• Single License
• Modular design - add extensions and alternate mounting configurations
• Seamless force sensor interface
• Easy to service electronics
• IntelliMESUR software sets up tests, records data, and analyzes data
• Ballscrew and linear guideway for smooth, quiet operation

This family of force testers is designed for tension and compression force testing applications, with force capacities up to 500 lbF (2.2 kN). Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures. Set up tests, record data, and analyze data via IntelliMESUR software. From basic tests to multi-step sequencing, IntelliMESUR is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device. Characterize and analyze material behavior with the optional Materials Testing Calculations Module , featuring a suite of common calculations such as tensile strength, Young’s modulus, yield point, and more. Coefficient of Friction (COF) Measurement is also available through an optional module.
