• Available in Metric and Inch/Metric models
• Metric models include a ratchet stop thimble with a constant measuring force
• Supplied with a flat anvil and rod anvil
• Special lapped disc anvils (optional). The Uni-Mike can be used as a height micrometer
• Carbide tips resist wear on the measuring faces for accurate measurements for an extended period of time
• SPC output function allows for quick and easy data management in real time
• Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Certificate of Inspection is provided
• Includes a standard bar except for 0-25mm and 0-1" models
• IP65 protection permits use in environments exposed to cutting oil, dust, etc.**
• Supplied in fitted plastic case

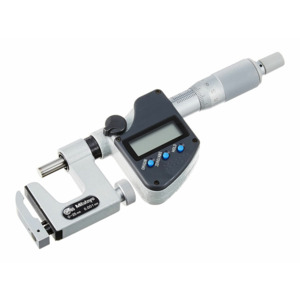

The Mitutoyo Uni-Mike digital micrometer features a clamp on the anvil side of the micrometer’s frame to allow the use of several different types of anvils. Depending on the type of anvil used, the Uni-Mike is proficient in measuring the thickness of tubes, rivet head heights, and shoulder-edge distances. A special disc anvil is available, which allows the Uni-Mike to operate similar to an indicator on a stand when measuring workpieces.
