Enerpac

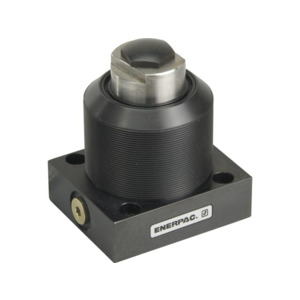

Enerpac WSL331 Work Support, 0.54" Stroke, 7500 Lbs Capacity, Lower Flange, Spring Adv, WSL Series
Our Part #10145182
Condition:New
Mfr Part #WSL331
Enerpac
Enerpac WSL331 Work Support, 0.54" Stroke, 7500 Lbs Capacity, Lower Flange, Spring Adv, WSL Series
Our Part #10145182
Condition:New
Mfr Part #WSL331
$722.00EACH
- Description
- Specifications
- Documents
- Low pressure lock-up capability enables the use of machine tool hydraulic systems
- High rated support capacities allow for more compact fixture design
- Corrosion resistant materials, compatible with most coolants and environments
- Threaded and manifold air vent ports allow fixturing that prevents coolants from being drawn into the system
- Minimized deflection increases machining accuracy
- Multiple mounting configurations allow design flexibility
- Can be operated as air advance by removing the spring and applying air pressure on the vent port
- Support force and clamping force must be matched. Support force should be at least 150% of clamping force.
- Do not exceed maximum flow rates to avoid premature lockup.
- Custom cylinders including longer stroke lengths are avaliable on request.
- Enerpac work supports provide either additional non-fixed location points to the clamps, or support to larger or thin section workpiece components, always in order to minimize workpiece deflection during machining.
Brand: Enerpac
Series: WSL Series
Maximum Operating Pressure: 5000 psi
Mounting Style: Lower Flange
Product Type: Workholding Tools
Product Weight: 6.3 lb.
Stroke Length: 0.54 in.
