• Double-acting for fast and controlled advance and retract
• Nitrocarburized surface resists side-loading and cyclic wear
• 10% side-load resistance over full cylinder stroke
• Weather protected, inside and out
• Upper and lower replaceable bearings support the plunger throughout the stroke
• Certified lifting eyes
• Base mounting holes
• Collar threads included on models up to 250 ton. Optional on 300 ton and higher.
• Maximum working pressure up to 10,000 psi (700 bar)
• Complies to ASME B30.1

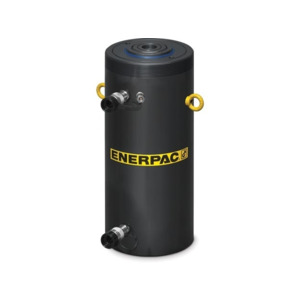

HCR Series Hydraulic Cylinders are double-acting which delivers a faster and more controlled return of the plunger compared to load/gravity return equivalents.

Enerpac High-Tonnage Cylinders are equipped with numerous special features to ensure the durability, safety, and performance needed for large-scale construction projects. Among these features are low-wear high-pressure seals, replaceable composite plunger support bearings, and a robust nitrocarburized finish on both the body and plunger.
