• Measurement operations can be performed by using th hybrid controller box with a touch screen and integrated sheet keyboard
• It is capable of measuring with a digital step of 0.1µm
• Excellent accuracy of (1.1 + 0.6L/600) µm
• Bidirectional Digimatic data output (Digimatic S1)
• Measurement results can be printed from a receipt printer or Digimatic Printer (DP-1VA) and sent to a PC via wireless communication, USB cable or USB -Stick
• Pneumatic drive mechanism
• Automatic running of pre-learned part programs
• Excellent visualization of GO/+/-NG tolerance comparisons
• Independent operation with rechargeable battery
• LH-Communication Tool Software available online free of charge
• Dimension L 492 mm x W 238 mm x H 996 mm

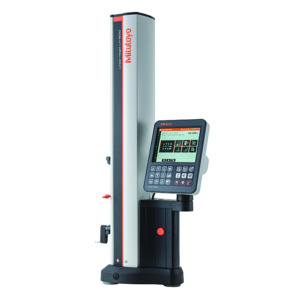

The Mitutoyo LH-600F Linear Height Measurement System is the latest model in the Mitutoyo Linear Height Gage line with several new features along with best-in-class accuracy using a high-accuracy scale unit and high-accuracy guiding mechanism manufactured in our own Japanese facilities. The LH-600F now features a touch screen interface that allows for easy and intuitive operation, allowing users to measure with the press of a button or through touch screen icons. The rotatable and adjustable display of the LH-600F also allows for use from both front and rear orientations as well. There are new output options including a Digimatic output that allows data to be sent directly to Excel or SPC software, wired or wirelessly, while maintaining USB and RS232C output capabilities.
