Altech

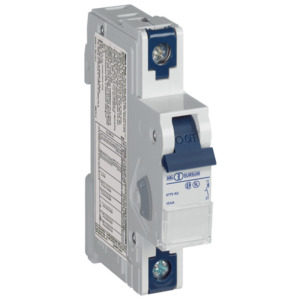

Altech 1Z1.6UM UL 508 Mini-Molded Case Circuit Breaker, Z-Trip, 1 Pole, 1.6A Current Rating
Our Part #10106749
Condition:New
Mfr Part #1Z1.6UM
Altech
Altech 1Z1.6UM UL 508 Mini-Molded Case Circuit Breaker, Z-Trip, 1 Pole, 1.6A Current Rating
Our Part #10106749
Condition:New
Mfr Part #1Z1.6UM
$48.63EACH
- Description
- Specifications
- Documents
- Short Circuit Withstand Rating (UL/CSA - Ratings): 0.3-60A (RC): 10kA with UL-listed; RK5 back-up fuse or MCCB
- Group Short Circuit Withstand Rating (UL/CSA - Ratings): 0.3-10A (RC): 10kA; 12-60A (RC): 5kA; no branch circuit protection required
- Interrupting Capacity (VDE - Ratings): 0.3-63A (RC): 10kA
- Calibration Temperature: 40°C (104°F)
Brand: Altech
Number of Poles: 1
Series: V-EA Series
Current Rating: 1.6 A
DC Voltage: 42 V
IP Rating: IP20
Mounting Type: DIN Rail
Operating Temperature: -13 to 131°F
Storage Temperature: -40 to 158°F
Style: Z-Trip
Terminal Size: Top: 18-3 AWG; Bottom: 18-2 AWG (Line/Load reversible)
Torque: 2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)
Voltage Rating: 480Y/277 VAC
$48.63EACH
