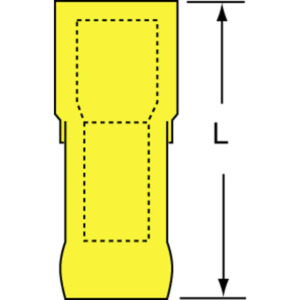

3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This versatile terminal has a butted-seam barrel that is covered by a see-through, pre-insulated transparent tubing. The tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

• Dents and rolled edges of this female disconnect terminal offer excellent holding force
• When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
• Mates with 0.25-in wide male tab
• Made of durable brass for good conductivity and has corrosion-resistant tin plating
• Withstands a maximum temperature of 221 degrees F (105 degrees C)
• Rated 600V for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

• Color: Yellow
• Diameter: 0.32 Inch
• Material: ETP Copper
• Part Number: MNHU10-250DFIX
• Width: 0.39 in
