This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

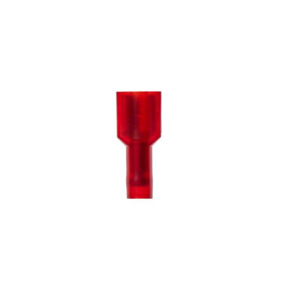

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The terminal has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve which serves to guide the wire into position. The nylon-sleeve is abrasion-resistant, fully insulated and flared to allow a positive grip. Its stepped design ensures mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

• Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
• Dents and rolled edges of this female disconnect terminal offer excellent holding force
• Allows for quick and easy disconnect of wires
• Made of durable brass for good conductivity and has corrosion-resistant tin plating
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• Rated 600V for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

• Diameter: 0.23 Inch
• Part Number: MNG18-250DFIK
• Width: 0.37 in
