• Embossed finish reduces glare and slippage
• Two-layer: conductive bottom, dissipative top
• Comes in .06” (1.5mm) and .08” (2mm) thicknesses
• Durable and rigid, no curling
• Withstands high temperatures, solder, flux, and harsh chemicals
• Top (colored) layer: 10e6 – 10e8 ohms RTT, RTG, Vol R
• Bottom (black) layer: less than 5 x 10e5 ohms RTT
• No outgassing; UV additives for color stability
• RoHS3, REACH complaint
• Pre-cut mats include two 10mm female snaps

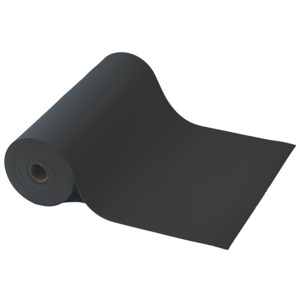

ACL Staticide Dualmat 8485BLKM2448 is a static dissipative industrial-grade elastomer designed for use on tables and other grounded workbench surfaces. Developed to conform to the most stringent ESD and lead-free requirements, the electrical properties of Dualmat are volume dissipative. Constructed of a chemically cross-linked material with different electrical resistances on each side, Dualmat will not delaminate. The material is as durable as rigid laminate and as comfortable and appealing as softer rubber or vinyl. Designed to withstand solvents and solder, the mat will not curl and has excellent abrasion resistance. Comprised of polymers that will not lose electrical properties or outgas, Dualmat is ideal for cleanroom environments and suitable to use with constant monitor systems. Meeting both ANSI/ESD S20.20 and European IEC 61340-5-1 specifications, Dualmat has outstanding charge dissipation, rapid charge decay, no charge suppression, and low tribogeneration properties. The embossed surface also helps to reduce glare, prevent part slippage, and facilitate cleaning. Dualmat is available in 40ft rolls, pre-cut mats with two 10mm female snap sockets installed, and can be custom cut to order with cutouts and curves. Rolls come in widths of 24, 30, 36, or 48in. Royal Blue and Dark Gray are available in both .06in/1.5mm and .08"/2mm thicknesses.
