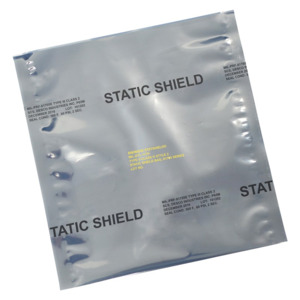

Desco 12910 Static Shield Bag, Metal-In, 3" x 5", 100 Ea, 81705 Series
Our Part #10064892
Condition:New
Mfr Part #12910
Desco
Desco 12910 Static Shield Bag, Metal-In, 3" x 5", 100 Ea, 81705 Series
Our Part #10064892
Condition:New
Mfr Part #12910
$Pack
- Description
- Specifications
- Documents
- MIL-PRF-81705E Type III, Class 2 Qualified Film Laminate (0.0028”). Listed on the qualified products list (QPL) Defense Standardization Program for electrostatic discharge (ESD) protective materials.
- Converted per MIL-DTL-117H. Constructed and marked per requirements for heat-sealable bags used in military preservation.
- Material Identification Printed Between Polyester and Aluminum Shielding Layer. Prevents markings from rubbing or sloughing off.
- <10 nJ Energy Limit Test per MIL-PRF-81705E Method 4.6.9. Meets requirements1 for ESD shielding packaging inside and outside an ESD Protected Area (EPA).
- Dissipative Outer Surfaces Rtt <1 x 10¹² ohms per MIL-PRF-81705E Method 4.6.8. Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator.
- Dissipative Inner Surface Rtt ≥ 1 x 10⁵ to <1 x 10¹² ohms per ANSI/ESD STM11.11. Allows bag to be used with ESD susceptible items.
- Lead-free RoHS compliant
- Made in the United States of America
Brand: Desco
Opening Type: Open Top
Thickness: 2.8 mil
Length: 5"
Width: 3"
Color: Silver
ESD Safe: Yes
Heat Sealable: Yes
Material: Low-Density Polyethylene (LDPE)
Package Quantity: 100 Per Pkg.
Product Type: Static Shielding Bags
Puncture Strength: 12 lbs
Series: 81705 Series
Size W x L: 3" x 5"
Surface Resistivity: Interior: ≥ 1 x 10⁵ to < 1 x 10¹² ohms/sq, Exterior: < 1 x 10< 1 x 10¹² ohms/sq Ohms/sq
Tensile Strength: 4600 PSI
Type: Metal-In Static Shielding Bag
