• .75kVA / 750VA / 600W line interactive 1U rack/vertical UPS, Sine wave output
• 120V output, Corrects brownouts and overvoltages from 83V to 147V
• 0.8 Power Factor, Front panel status LEDs
• Mounting brackets support 2 and 4 post installation
• 98% line-mode efficiency, 2 switched load banks
• USB, RS232, EPO and slot for Network Management Card options
• 120V NEMA 5-15P input, 6 NEMA 5-15R outlets
• To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and slot for network management accessory card. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

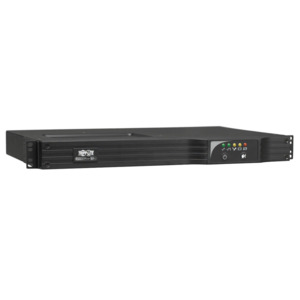

■ Tripp Lite SMART750RM1U .75kVA / 750VA / 600 watt line interactive UPS
■ 1U rack/vertical compatible form factor
■ Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support
■ NEMA 5-15P input; 6 5-15R output receptacles
■ Installed depth of only 16.75 in. / 42.5cm
■ Sine wave output in both AC and battery backup modes
■ Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
■ Full load efficiency rating of 98% saves energy and ensures cool operating temperatures
■ Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
■ USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
■ HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
■ Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
■ 3 stage metered LEDs offer current monitoring and battery charge level
■ Mains power and voltage regulation LEDs offer at-a-glance power status information
■ Front panel switches support self-test and alarm cancel functions
■ Field replaceable, hot-swappable internal UPS batteries
