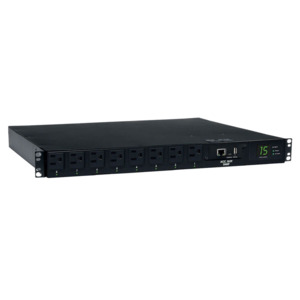

• Single-phase 12A 120V Auto Transfer Switch / ATS PDU
• Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
• Enables redundant A/B power option for single-corded network devices
• Separate primary & secondary inputs connect to any two compatible power sources
• 1U horizontal rackmount; 2 NEMA 5-15P inputs; 8 NEMA 5-15R outlets
• Individually switched outlets; Two digit visual current meter
• Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Tripp Lite's 12-ft. (3.66 m) Gray snagless category 5e (Cat5e) patch cable has 2 snagless RJ45 molded male connectors featuring integral strain relief. The cable is manufactured from PVC 4-pair stranded UTP and is rated for 350MHz/1Gbps communication. All cables are offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Standard, non-snagless category 5e patch cables are also available (N002-Series).

■ 120V 15A Automatic Transfer Switch (ATS) / Switched PDU (Agency de-rated to 12A continuous)
■ Provides a redundant A/B power option for non-redundant networking equipment with a single input power cord
■ Switched PDU features enable programmable or real-time power control of individual outlets via built-in network interface
■ Digital display continuously reports total output power consumption in amps
■ 8 switched NEMA 5-15R outlets
■ 1U horizontal rackmount form factor; 14.5 in. / 36.8 cm depth
■ Set of two 12 ft. / 3.6m NEMA 5-15P input cables support connection to separate PRIMARY and SECONDARY power sources
■ ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
■ ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
■ Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
■ On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
■ Super-fast switchover between primary and secondary power sources occurs in 2-7 milliseconds
■ Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
■ PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
■ IP-based Auto Probe detects lost connectivity and restores service autonomously
■ Optional EnviroSense2 modules (sold separately) provide a variety of environmentalmonitoring capabilities
■ Outlets are factory programmed for sequential turn-on at 250 millisecond intervals as the PDU is first energized
■ Front panel LEDs confirm power availability on both input lines
■ Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
