• Supports speeds up to 40 GbE/100 GbE
• Push/pull tab connector installs/removes with one hand
• 12-fiber MTP/MPO connectors
• 100% tested for low insertion loss and back reflection
• 50/125 duplex glass fiber construction

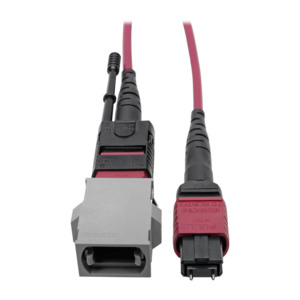

Adapter patch cable converts legacy 12-fiber MTP/MPO Method C cables to Method B Polarity for compatibility with Parallel Optics fiber mapping in Base-8 40GBASE-SR4 and 100GBASE-SR4 applications.
OM4-Rated for 40 Gb Ethernet Applications
■ Designed to extend high-density connections between network equipment in telecommunication rooms and data centers
■ Converts legacy 12-fiber Method C Polarity cables to Method B Polarity for use in Base-8 applications
■ Supports speeds up to 40 GbE/100 GbE
■ Backward compatible with existing 50/125 fiber
■ Magenta-colored for identification as an OM4 cable MTP/MPO Connectors with Push/Pull Tab
■ 12-fiber male/female connectors
■ Push/pull tab connector easy to install and remove with one hand
■ 100% tested for low insertion loss and back reflection Error-Free Signal Transfer
■ 50/125 duplex glass fiber construction
■ Meets current IEEE 802.3ae and TIA standards
■ Plenum-rated OFNP jacket perfect for ceilings, walls and ducts
■ Jacket features serial number for quality control and traceability
