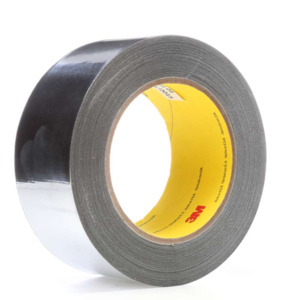

Strong and flexible, our 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 consists of an aluminum foil, glass cloth backing combined with a pressure sensitive silicone adhesive. Ideal for use as a protective wrap for heat sensitive cables and other instruments exposed to movement and vibration. Commonly used in aerospace, automotive and general industrial applications.

Strength with Combined Technology
3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 is a strong and flexible tape with high tensile strength, puncture and tear resistance. With a pressure sensitive silicone adhesive, it adheres well to silicone surfaces and over irregular or uneven substrates. This tape is light and heat reflective, plus it resists flame, moisture, weather and UV degradation. It is a chemical resistant, thermally conductive tape that performs consistently at temperatures ranging from -65°F/-54°C to 600°F/316°C. 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363 meets the requirements of F.A.R. 25.853 (a). For applications requiring a die-cut, 3M™ High Temperature Aluminum Foil/Glass Cloth Tape 363L is available with a liner.
Recommended Applications


Heat reflective wrap over insulation cables, instruments or other high temperature sensitive materials
Ideal for industrial applications that will be exposed to movement and vibration
Bundling wire harnesses
High temperature/performance applications in the aerospace, automotive and industrial industries

• High tensile strength, glass cloth reinforced foil tape offers puncture, fracture and tear resistance
• Performs continuously over a wide temperature range from -65°F/-54°C to 600°F/316°C
• Light and flexible construction easily conforms to curved or irregular surfaces
• Thermally conductive and reflective backing assists with heat shielding
• Pressure sensitive silicone adhesive adheres to difficult surfaces, including silicone

• Color: Silver
• Specifications: F.A.R. 25.853(a), ASTM D3758, ASTM D3330, D3652N/A
• Width: 2 in
