Brady

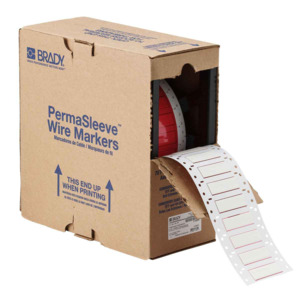

Brady HX-375-2-WT Wire Marking Sleeves, 3" Core PermaSleeve Heatex Polyolefin, 8 to 4 Gauge
Our Part #10022593
Condition:NEW
Mfr Part #HX-375-2-WT
Brady
Brady HX-375-2-WT Wire Marking Sleeves, 3" Core PermaSleeve Heatex Polyolefin, 8 to 4 Gauge
Our Part #10022593
Condition:NEW
Mfr Part #HX-375-2-WT
Has Expiration Date
RoHS
Has Expiration Date
RoHS
- Description
- Specifications
- Documents
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
- A ribbon is required to print this material. Use Part Number R6400
- .375" in Diameter x 2" in Width
Brand: Brady
Color: White
Alternate Product Number: HX-375-2-WT-6691
Compatibility: BBP11; BBP12; BBP72; i7100; PR Plus; THT 3" Core Printers
Dimensions: 0.645" H x 2" W
Material: Heat-shrink Polyolefin
Note: 1 in Vertical Repeat
Package: Roll of 1000 Each
Print Technology: Thermal Transfer
Product Type: Wire Marker Sleeves
Shelf Life: 1825 days
Wire Diameter: 0.188 to 0.32"
Wire Gauge Capacity: 8 AWG - 4 AWG
