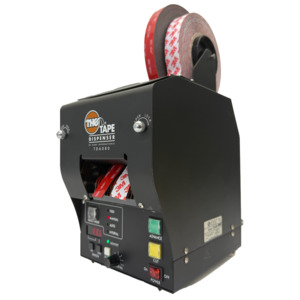

This Electric Heavy Duty Tape Dispenser has been designed with specially coated rollers to ensure smooth dispensing of HIGH ADHESIVE AND TECHNICAL TAPES (like VHBTM, ACX ).
The TDA080-NS-LF is an ideal industrial strength dispenser for high-volume production lines and operations requiring repetitive taping.
Equipped with specially fluor-coated rollers, the TDA080-NS-LF automatically dispenses & cuts most types of complex technical tapes (like foam, double side, PET cloth, fleece and others) up to 3.15″ (80mm) wide.
4 Modes of Operation: Manual Feed / Manual Cut, Manual Feed and Cut, Auto Feed and Cut and Interval Feed and Cut.
Quickly and easily program a desired length digitally and the TDA080-NS-LF will precisely dispense and cut with accuracy of /- 1mm.
The TDA080-NS-LF comes with a 3″ (76mm) core. Optional foot switch (TDA080PFS) and Fully Serrated blade (P279FS) are available.
Features:
- Modified TDA080 with specially fluor-coated rollers for Aluminum Foil, Transfer with delicate adhesive, Vinyl, Thin, HIGH ADHESIVE AND TECHNICAL TAPES (like VHBTM, ACX )
- Automatically dispenses and cuts virtually any tape – including duct tape
- Designed for continuous industrial use applications
- Compact design and heavy-duty metal construction
- Accepts tape widths from .25″ to 3.15″ (6 to 80mm)
- Cut lengths from 1.6″ to 394″ (40 to 9999mm)
- Accuracy /- .04″ (1mm) (depending on type of tape)
- 9″ (228mm) maximum outside diameter roll
- Digital push switch display for easy length adjustments
- Comes with standard 3″ (76mm) core
- Adjustable feed intervals
- Safety interlock
- Can dispense some non-adhesive materials
- Switchable voltage (115V or 230V)
- Four operating modes (Manual Feed / Manual Cut, Manual Feed & Cut, Auto Feed & Cut and Interval Feed & Cut)
- Optional foot switch available, see Accessories
- Optional serrated cutting blade for thick tapes, TDA080279FS
- Designed in the U.S.A.
