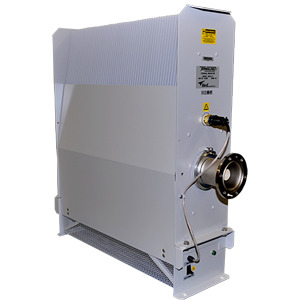

Bird 8937-230 RF Coaxial Termination, Oil-Cooled, 10 kW, 1 GHz, 3 1/8 Unflanged, Flush, 230 VAC, 8930 Series
Our Part #60115.1
Condition:New
Mfr Part #8937-230
Bird 8937-230 RF Coaxial Termination, Oil-Cooled, 10 kW, 1 GHz, 3 1/8 Unflanged, Flush, 230 VAC, 8930 Series
Our Part #60115.1
Condition:New
Mfr Part #8937-230
$10,540.00EACH
- Description
- Specifications
- Documents
- Forced-air assisted oil-cooled load for high-power transmitter applications up to 10 kW and 1 GHz
- Interlock control circuit provides fail-safe protection of the transmitter and load resistor in the event of an ac power failure to the blower
- 115V or 230V models available
Brand: Bird
Connector Type: 3 1/8, Unflanged, Flush
Frequency: 1 GHz
Series: 8930 Series
Certifications: RoHS
Dimensions: 32.8 x 9.5 x 33.4"
Finish: Gray Powder Coat
Impedance: 50 Ω
Input Voltage: 230 VAC
Operating Temperature Range: -40-45°C
Power: 10 kW
Special Features: Oil-Cooled
$10,540.00EACH
