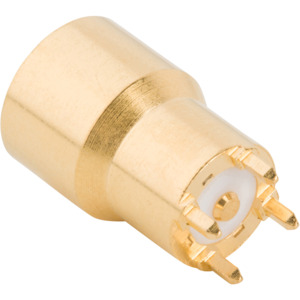

AFI Connectors

Features and Benefits:

• Proprietary two-piece board-to-board design with embedded bullet adapter
• Industry leading float system of .030 inch [0.8 mm] radial and .040 inch [1.0 mm] axial
• Multiple PCB mounting configurations allow for design versatility
• Extensive 50 and 75 ohm products available

The AFI interface utilizes a proprietary two-piece configuration that allows for high misalignment compensation both axially and radially. This industry-leading float results in a maximum misalignment allowed by the system of .030 inch [0.8 mm] radial and .040 inch [1.0 mm] axial.

The interface is available in two configurations: 75 ohm with a performance of DC to 3 GHz, and 50 ohm with a performance of DC to 6 GHz.

Applications:

• Military/Aerospace
• CMTS
• Broadband
• Internet Switching
• Routers
• Telecommunications
• Daughter Cards/Backplanes
