Amphenol RF

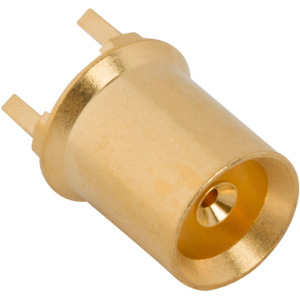

Amphenol RF 920-250J-51P RF AFI Connector, Straight, Smooth Bore, Jack, PCB Through Hole, 50 Ohm
Our Part #57651.1
Condition:New
Mfr Part #920-250J-51P
Amphenol RF
Amphenol RF 920-250J-51P RF AFI Connector, Straight, Smooth Bore, Jack, PCB Through Hole, 50 Ohm
Our Part #57651.1
Condition:New
Mfr Part #920-250J-51P
CA Prop 65
RoHS
$6.23EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $6.23 | |
| 200 | $6.11 | Save |
| 500 | $5.92 | Save |
| 1,000 | $5.79 | Save |
Multiples of: 100
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
AFI Connectors
Features and Benefits:
- Proprietary two-piece board-to-board design with embedded bullet adapter
- Industry leading float system of .030 inch [0.8 mm] radial and .040 inch [1.0 mm] axial
- Multiple PCB mounting configurations allow for design versatility
- Extensive 50 and 75 ohm products available
The AFI interface utilizes a proprietary two-piece configuration that allows for high misalignment compensation both axially and radially. This industry-leading float results in a maximum misalignment allowed by the system of .030 inch [0.8 mm] radial and .040 inch [1.0 mm] axial.
The interface is available in two configurations: 75 ohm with a performance of DC to 3 GHz, and 50 ohm with a performance of DC to 6 GHz.
Applications:
- Military/Aerospace
- CMTS
- Broadband
- Internet Switching
- Routers
- Telecommunications
- Daughter Cards/Backplanes
Brand: Amphenol RF
Gender: Jack
Termination Type: PCB Through Hole
Impedance: 50 Ohms
Contact Finish: Gold
Contact Material: Beryllium Copper
Finish: Gold
Frequency: 6 GHz
Insulation Material: PTFE
Material: Brass
Orientation: Straight
Type: AFI Connectors
$6.23EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $6.23 | |
| 200 | $6.11 | Save |
| 500 | $5.92 | Save |
| 1,000 | $5.79 | Save |
Multiples of: 100
