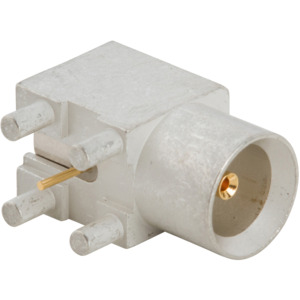

Amphenol RF 920-192J-71A RF AFI Connector, Right Angle, Jack, Smooth Bore, PCB Through Hole, 75 Ohm

Our Part #57649.1

Condition:New

Mfr Part #920-192J-71A

Amphenol RF 920-192J-71A
Amphenol RF
Amphenol RF

Amphenol RF 920-192J-71A RF AFI Connector, Right Angle, Jack, Smooth Bore, PCB Through Hole, 75 Ohm

Our Part #57649.1

Condition:New

Mfr Part #920-192J-71A

CA Prop 65
RoHS
$16.97EACH
Qty:Price:Savings
1$16.97
200$16.63Save
500$16.12Save
1,000$15.78Save
Multiples of: 100
Calif. Prop 65
RoHS

AFI Connectors

Features and Benefits:

  • Proprietary two-piece board-to-board design with embedded bullet adapter
  • Industry leading float system of .030 inch [0.8 mm] radial and .040 inch [1.0 mm] axial
  • Multiple PCB mounting configurations allow for design versatility
  • Extensive 50 and 75 ohm products available

The AFI interface utilizes a proprietary two-piece configuration that allows for high misalignment compensation both axially and radially. This industry-leading float results in a maximum misalignment allowed by the system of .030 inch [0.8 mm] radial and .040 inch [1.0 mm] axial.

The interface is available in two configurations: 75 ohm with a performance of DC to 3 GHz, and 50 ohm with a performance of DC to 6 GHz.

Applications:

  • Military/Aerospace
  • CMTS
  • Broadband
  • Internet Switching
  • Routers
  • Telecommunications
  • Daughter Cards/Backplanes

BrandAmphenol RF
GenderJack
Termination TypePCB Through Hole
Impedance75 Ohms
Contact FinishGold
Contact MaterialBeryllium Copper
FinishGold
Frequency6 GHz
Insulation MaterialPTFE
MaterialBrass
OrientationRight Angle
TypeAFI Connectors
$16.97EACH
Qty:Price:Savings
1$16.97
200$16.63Save
500$16.12Save
1,000$15.78Save
Multiples of: 100
