Amphenol RF

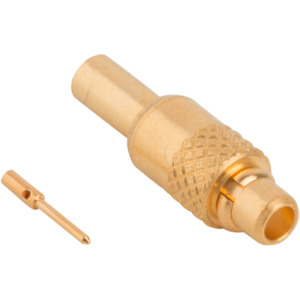

Amphenol RF 908-41600 RF MMCX Connector, Straight, Solder Plug, 50 Ohm
Our Part #57583.1
Condition:New
Mfr Part #908-41600
Amphenol RF
Amphenol RF 908-41600 RF MMCX Connector, Straight, Solder Plug, 50 Ohm
Our Part #57583.1
Condition:New
Mfr Part #908-41600
WARNING
RoHS
$20.39EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $20.39 | |
| 200 | $19.98 | Save |
| 500 | $19.37 | Save |
| 1,000 | $18.96 | Save |
Multiples of: 100
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
MMCX Connector
Features and Benefits:
- Broadband performance with low reflection
- High-quality solution at a low cost
- Quick connect/disconnect snap-on mating reduces installation time
- IConforms to European CECC 22000 specifications
The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It is a 50 ohm impedance interface with broadband capability of DC to 6 GHz and secure, fast and easy snap-on/snap-off coupling. MMCX connectors have a smaller footprint than the MCX series, and are available in a wide array of configurations.
Applications:
- Antennas
- Instrumentation
- Satcom
- Base Stations
- Telecommunications
- Broadband
- GPS
Brand: Amphenol RF
Gender: Plug
Termination Type: Solder
Impedance: 50 Ohms
For Use With: 0.047-inch Conformable
Contact Finish: Gold
Contact Material: Brass
Finish: Gold
Frequency: 6 GHz
Insulation Material: PTFE
Material: Brass
Orientation: Straight
Type: MMCX Connectors
